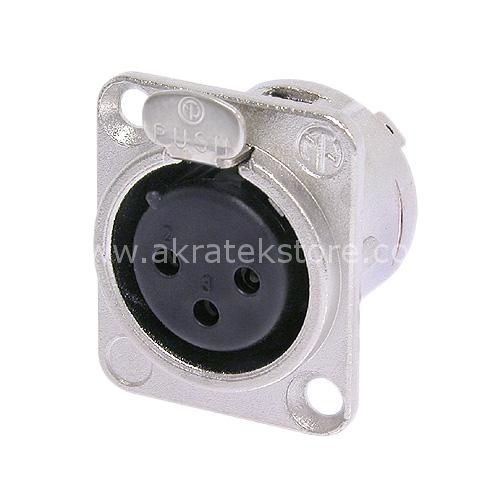

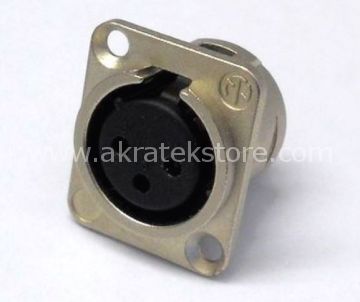

- Solder Cups
- Nickel Housing
- Silver Contacts
|
Electrical
|
|
|
Capacitance
|
Between Contacts: ≤4 pF
|
|
Contact Resistance
|
Inner: ≤5 mΩ
|
|
Dielectric Strength
|
1.5 kVDC
|
|
Insulation Resistance
|
Initial: >2 GΩ
|
|
Rated Current Per Contact
|
16 A
|
|
Rated Voltage
|
50 V
|
|
Mechanical
|
|
|
Insertion Force
|
≤20 N
|
|
Withdrawal Force
|
≤20 N
|
|
Lifetime
|
>1,000 mating cycles
|
|
Wire Size
|
0.1 sq. in (2.5 sq. mm)
|
|
|
14 AWG
|
|
Wiring
|
Solder contacts
|
|
Locking Device
|
Latch lock
|
|
Chassis Shape
|
D
|
|
Material
|
|
|
Contact Plating
|
2 µm Ag over 2 µm Ni
|
|
Contacts
|
Bronze (CuSn8)
|
|
Insert
|
Polyamide (PA 6.6 30 % GR)
|
|
Locking Element
|
Stahl Ck67
|
|
Shell
|
Zinc diecast (ZnAl4Cu1)
|
|
Shell Plating
|
Nickel
|
|
Environmental
|
|
|
Approvals
|
UL
|
|
Flammability
|
UL 94 HB
|
|
Standard Compliance
|
IEC 61076-2-103
|
|
Protection Class
|
IP40
|
|
Solderability
|
Complies with IEC 68-2-20
|
|
Temperature Range
|
-22 to 176°F (-30 to 80°C)
|
|
Diameter
|
0.93" (23.6 mm)
|
|
Dimensions
|
1.22 x 1.02" (31 x 26 mm)
|
|
Packaging Info
|
|
|
Package Weight
|
0.1 lb
|
|
Box Dimensions (LxWxH)
|
3.0 x 2.0 x 1.0"
|
